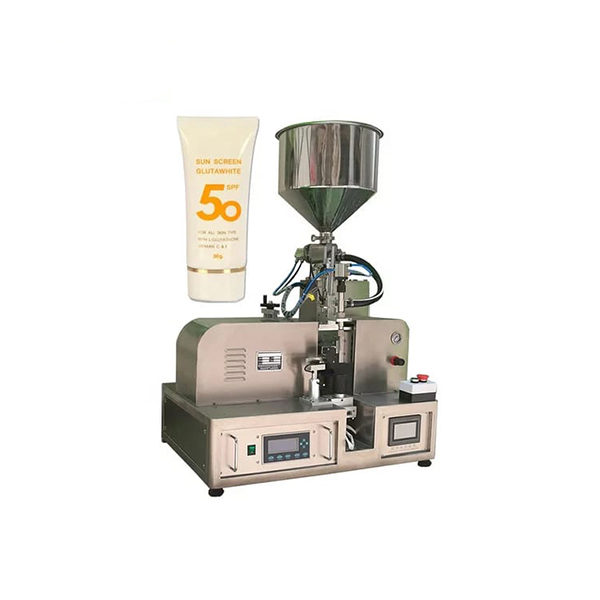

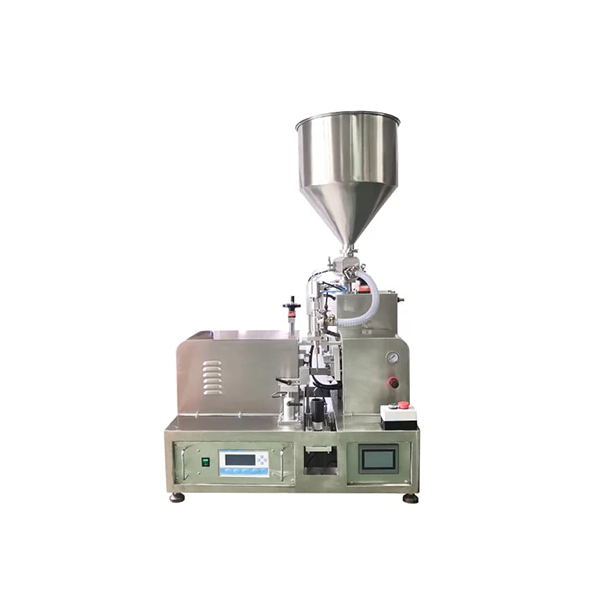

Semi-automatic Ultrasonic Tube Filling & Sealing Machine with Hopper

Semi-automatic Ultrasonic Tube Filling & Sealing Machine specifications:

• Hopper: 40 litres.
• Production rate: 15 – 25 tubes a minute.
• Maximum tube height: 50 – 250mm.
• Tube diameter: 10 – 50mm.
• Filling range: 25 – 250ml.

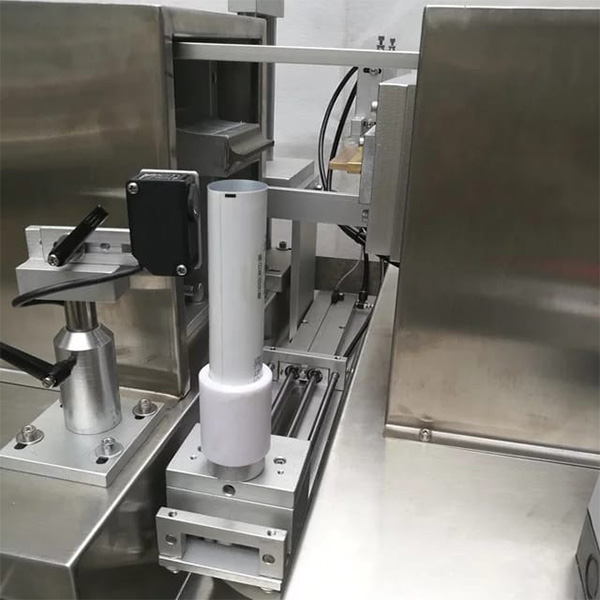

• PLC touch screen control system, automatic tube orientator (Panasonic infared positioning system), airtac solenoid valves.
• Fills liquid, gel and paste.
• Requires air supply pressure: 0.6/ 0.8 Mpa.
• Voltage: 2.2V
• Power: 2KW
• Weight: 180 kg.
• Machine dimensions (LxWxH): 860 x 680 x 1550mm.
